THE INDUSTRY STANDARD IN VACUUM LIFTING APPLICATIONS

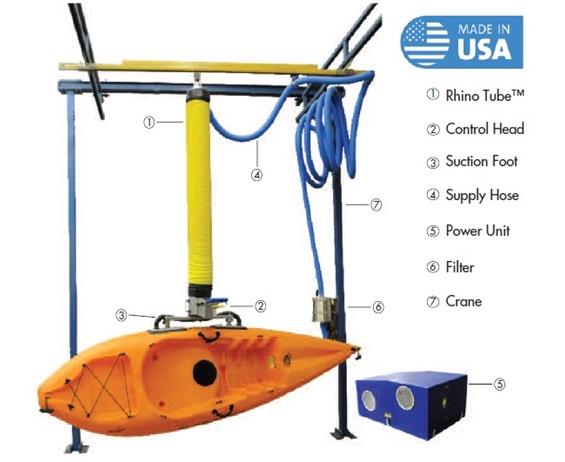

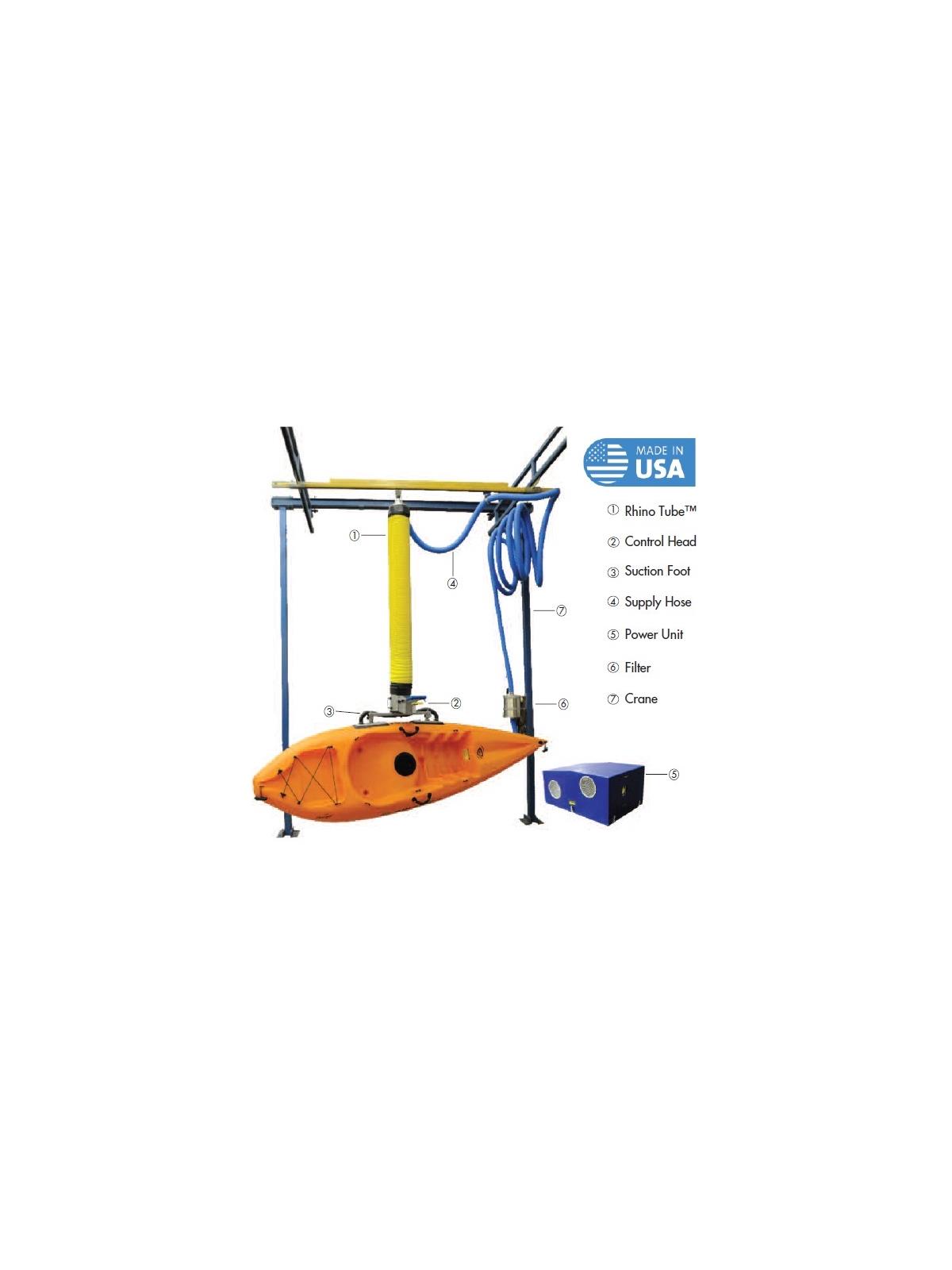

Fast and frequent lifting and moving of workpieces weighing up to 900 lbs. The lifting unit, operating unit, vacuum grippers and vacuum pump on the vacuum tube lifter can be configured according to customer specifications. The UniMove is characterized by its lifting tube, which contracts and extends when lifting and lowering the load. The large effective suction area confers a safe holding of the workpiece. A comprehensive range of accessories and spare parts available. Call today for pricing and availability. FOB Shipping Point.

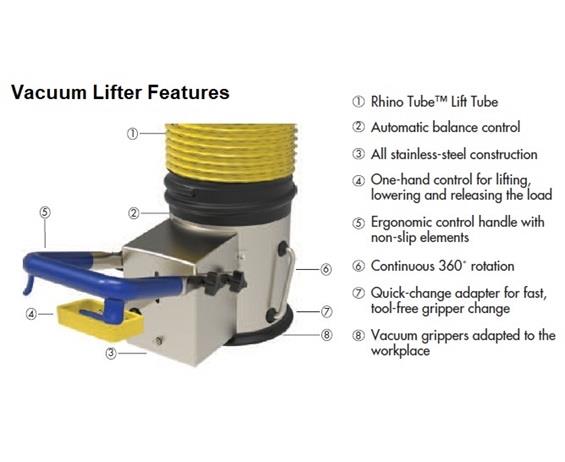

- Standard Stainless Steel Construction.-Assures durability regardless of plant environment.
- Heavy Duty, Enclosed Power Units.-Protects expensive components while offering quiet operation.
- Patented Progressive Control Valve.-Self cleaning and Teflon coated for a smooth operation.
- Safety Yellow Rhino Tube™ Lift tube.-Most appropriate color for a moving system in the workplace. Available in standard and hi-compression formats. Can be configured specifically based on the requirements of each individual application.
- Operator Adjustable Control Handle.-Ergonomically designed adjustable controls.
- 360 degree Ball Bearing Mounted Top Swivel.-Effortless movement with airtight integrity.
UniMove's unmatched experience offers the most advanced lifting systems available. Vacuum lifters provide the highest lifting capabilities, superior quality and the versatility to respond with unique solutions to the most difficult to handle items. HCM450 and HCM470 feature Direct Drive Vacuum Pump. All others feature a Belt-Drive Power Unit.
- Productively and effortlessly move any object in the workplace.
- Holds and gently lowers loads during power failures.
- Cushioned control surfaces to absorb vibration and temperature changes.
- Easy adjust-ability to accommodate all hand sizes.
- Specifically designed hand rest distributes forces evenly.
- Effortless ball bearing top rotation.
- Naturally angled hand grips.
- Control design naturally positions load away from body.

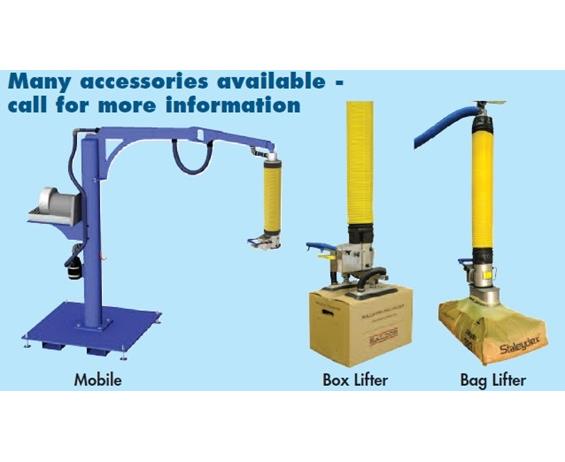

Choose from:
Single-Tube Lifters - for loads up to 300 lbs. and porous loads up to 225 lbs.
Hi-Capacity Dual-Tube Lifters - for loads up to 600 lbs.
Hi-Capacity Three-Tube Lifters - for loads up to 900 lbs.
