- 12V DC & 115V 1-Phase AC Standard.

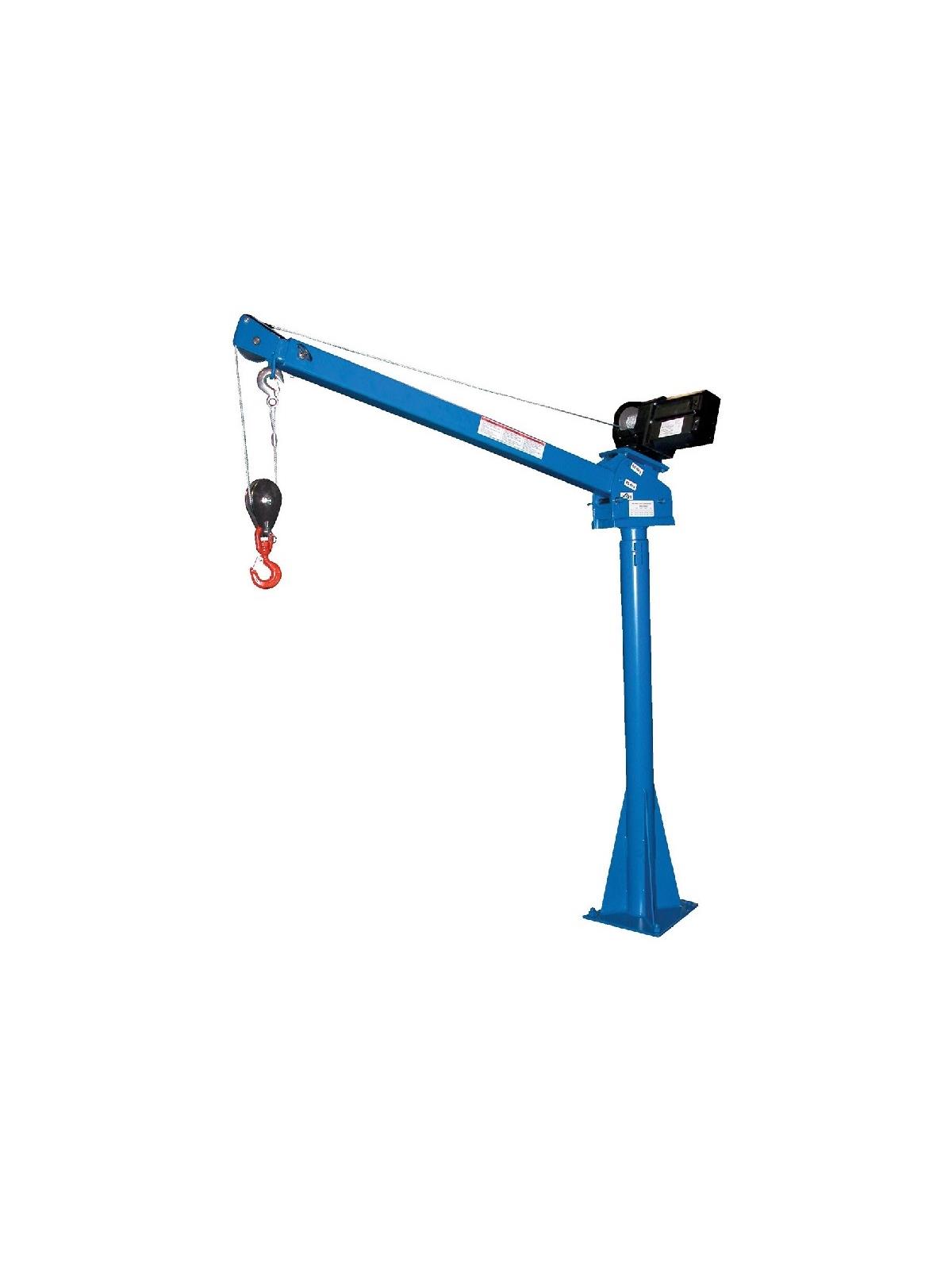

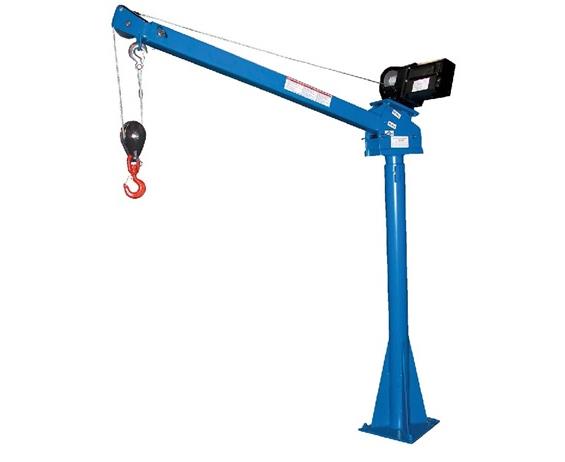

Designed for material handling applications on docks, in warehouses, or in truck beds. Choose either 12V DC, 1 HP with 6' long non-removable pendant control or 115V AC, 1/3 HP with fingertip switch to raise and lower hook. Meets ANSI and OSHA specifications. 12 x 12" mounting plate. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting. Battery not included.
A) Intermittent use cranes feature rotation hand brakes that offer unlimited 360° positioning. Mast mounts permanently. Boom adjusts in 12" increments and can be positioned at 4 elevations. DC models include 46' of 3/16" aircraft grade wire rope with swivel hook and safety latch while AC units feature 25' of 7/32" cable. Folds for storage.
B) The economical answer to your material handling problems. Offers light duty, intermittent use. Up to 1,500 lbs. uniform capacity at 27-13/16" boom extension. 360° locking manual rotation, 25' of 7/32" cable with hook on AC units, 46' of 3/16" cable on DC units.
FOB Shipping Point.
Due to tariffs and market conditions, pricing is subject to change.
